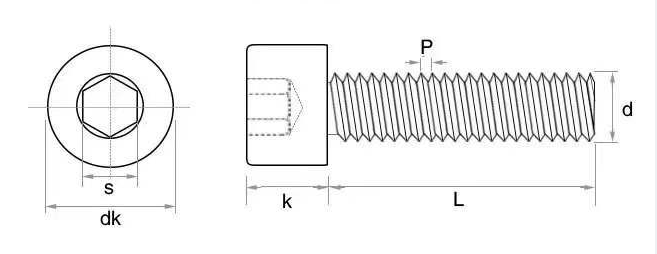

| ltem NO | Material | d | Threads per inch | dk | k |
| CEC024SS304H3/16 | SS304 | 3/16 | 24 | 7.8 | 4.5 |
| CEC024SS304H1/4 | SS304 | 1/4
| 20 | 9.3 | 6.4 |
| CEC024SS304H5/16 | SS304 | 5/16 | 18 | 11.9 | 7.9 |
| CEC024SS304H1/8 | SS304 | 1/8 | 40 | 5.5 | 3.0 |
| CEC024SS304H5/32 | SS304 | 5/32 | 32 | 6.2 | 3.8 |
| CEC024SS304H7/16 | SS304 | 7/16
| 14 | 15.6 | 11.0 |
| CEC024SS304H1/2 | SS304 | 1/2 | 12/13 | 18.8 | 12.5-12.8 |
| CEC024SS304H5/8 | SS304 | 5/8 | 11 | 22.0 | 15.5 |
| CEC024SS304H3/8 | SS304 | 3/8 | 16 | 14.1 | 9.4-9.8 |
| CEC024SS304H10 | SS304 | 10# | 32/24 | 7.7-7.9 | 4.8-5.0 |
| CEC024SS304H8 | SS304 | 8# | 32 | 6.8 | 4.1 |
| CEC024SS304H6 | SS304 | 6# | 32 | 5.6 | 3.3 |
| CEC024SS304H4 | SS304 | 4# | 40 | 4.5 | 2.7 |
| CEC024SS304H2 | SS304 | 2# | 56 | 3.6 | 2.2 |
| CEC024SS304H0 | SS304 | 0# | 80 | 2.4-2.6 | 1.5 |
